Simple Fluidized Bed Reactor for Catalyst Activation

This simple fluidized bed reactor is using a specialized tubular quartz glass reactor with a high-temperature resistance of up to 1000 °C. This equipment features three different gas feeds, allowing precise control of reaction conditions. Its compact design ensures it fits conveniently into a standard laboratory fume hood.

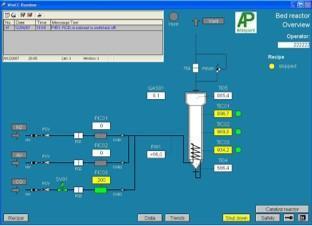

The special feature of this device is its fully automated function, which makes it a reliable and efficient tool for activating catalytic converters, for example.


  • 3 gas feeds.
  • Tubular quartz glass reactor (Tmax = 1000 °C) as fluidized bed reactor.
  • Compact design fits into a laboratory fume hood.
  • Fully automated.
  • Suitable for catalyst activation.
Dimensions L x D x Hmm960 x 1770 x 1100
Electrical supplyAC 220 V / 60 Hz +- 10 %, max. 3 kW
Ambient conditions5 to 40 °C, max. humidity 90% @ 20 °C
Pressure conditionsbar-1 to 0.5 bar
Temperature conditions°CReactor & furnace: 0-1000 °C
After reactor: 0 to 200 °C
Reactor typeTubular glass reactor
Overpressure protectionSafety valve, opening pressure: 0.5 bar
Gas supervisionCO sensor
Gas suppliesPressure 3.5 – 5 bar absolute,
Gases: Nitrogen, air and carbon monoxide,
total gas flow: 2500 l/h
