This synthesis reactor has a 3-liter stirred glass reactor system that is suitable for feeding both liquids and gases, as well as a solid feed designed for slurries.
This system is designed for a maximum pressure of 2.4 bar and can reach a maximum temperature of 200 °C. It is also equipped with an industrial control system that ensures precise and efficient process control.
Features:
- 3 L stirred glass reactor system.
- Liquid and gas feed, solid dosing for slurries.
- Design pressure 3 bar, Tmax= 200 °C, recommended operating pressure < 2.4 bar.
- Industrial control system.
Technical specifications
| Description | Unit | Value |
|---|---|---|
| Dimensions L x D x H | mm | 2000 x 13000 x 1050 |
| Weight | kg | 400 kg |
| Electrical supply | 230/400 V AC, 50 Hz, 16 A | |
| Reactor volume | L | 3 L |
| Temperature specifications | °C | Design temperature 200 °C, operating temperature 175 °C |
| Pressure data | barg | -1 to 3, recommended operating pressure < 2.4 bar |

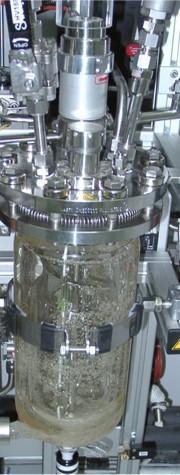

| Reactor | 3 l laboratory glass synthesis reactor with stainless steel lid | |

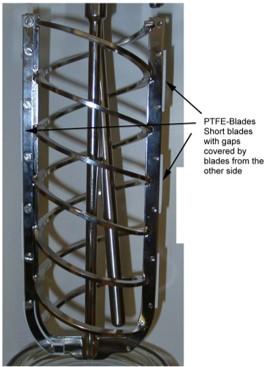

| Stirrer torque | Nm | 5 |
| Gas supplies | Ethylene, nitrogen | |

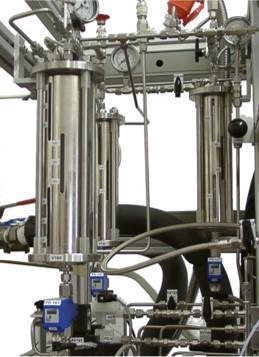

| Liquid supplies | Pressurized burettes (hexane, i-pentane) | |
| Solid and slurry supply | Solid feeder 1l | |
| Ambient conditions | 5 to 40 °C, max. humidity < 80 % |
