Gas Phase Polymerization Plant

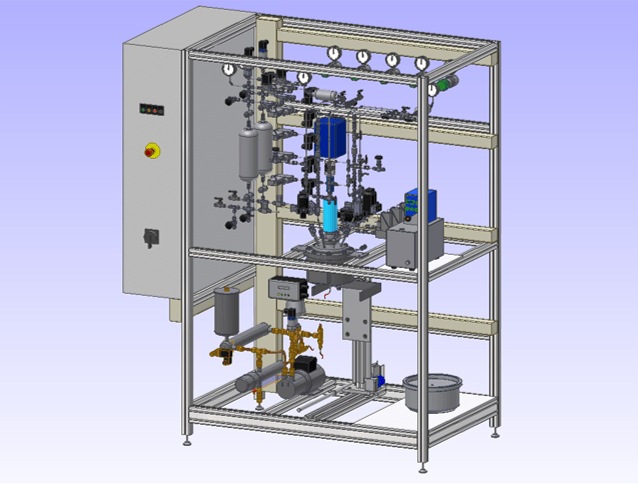

This gas phase polymerization plant uses a 1.8 liter reactor designed to operate at 175 °C and up to 40 bar operating pressure. This makes the system ideal for polymerization directly from the gas phase. An efficient stirring system ensures that the reaction phase is always optimally mixed. This system is equipped with a dynamic heating and cooling system that enables precise temperature control. The gas phase polymerization plant also has an integrated gas chromatograph for real-time analysis. The operation is fully automated and follows recipe-based protocols to ensure efficiency and consistency.


  • 1.8 l reactor for up to 175 °C and 50 bar.
  • Dynamic heating & cooling system.
  • Integrated gas chromatograph.

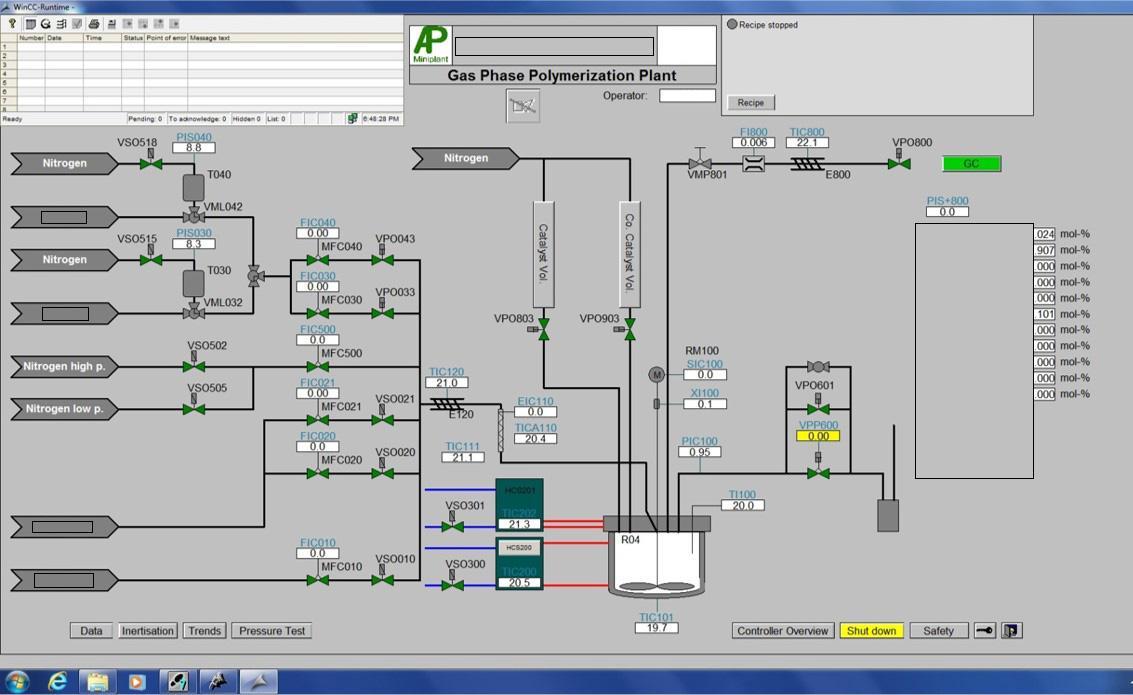

  • Fully automated recipe based operation.

Technical specifications

Dimensions W x D x Hmm1550 x 900 x 1900
Electrical supply3 x 380 V AC, 60 Hz, 20 A, 3,5 kW
Ambient conditions°C10 to 35 °C, Max. humidity < 85 %
Pressure conditionsbarPS -1 to 50, operation 0 to 40 bar
Temperature conditions°C-10 to 175

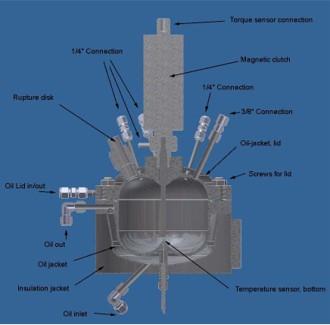

Reactor typeReactor with temperature measurement in the bottom and lid with heating/cooling jacket, material of construction is stainless steel 1.4404 (SS316L), agitator for swirling the gas phase in the reactor
Reactor volumel1.6
Gas SuppliesThermal mass flow controllers (examples)
Nitrogen 10 – 500 g/h
Ethylene 5 – 250 g/h
Hydrogen 0.001 – 0.1 g/h
Liquid or liquidified gas supplies2 Lines with 1 l pressure tanks, design pressure 50 bar
Heating cooling systemAP-Miniplant highly dynamic heating and cooling system with circulation pump, pneumatically controlled mixing valve, electrical heater with 1.5 kW power, water cooled cooler. Total oil volume 2.5 l.
Catalyst supplyDosing units with 1, 2 and 10 ml, pneumatic syringe pump 10 ml adjustable
