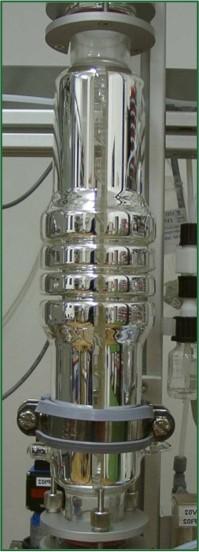

This glass distillation plant can be used for research and educational purposes. It consists of a glass column with vacuum insulation and a mirrored surface that increases efficiency.

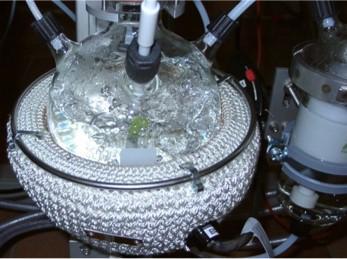

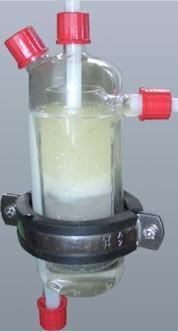

The rectification unit is equipped with a phase separator, which allows additional liquid/liquid separation and selective return of one phase. The electrically heated sump evaporator has a heating jacket with a heating capacity of 0.75 kW. The temperature can be controlled via an integrated temperature sensor, allowing the process to be set exactly.
The distillation plant is controlled via an industrial control system to provide you with comprehensive and reliable process control. This gives you full control over your process at all times.
Features:
- Glass column with vacuum insulation, mirrored.
- Phase separator for liquid / liquid separation.
- Evaporator with heating jacket (0.75 kW).
- Industrial control system.
Technical specifications
| Description | Unit | Value |
|---|---|---|
| Dimensions L x D x H | mm | 1560 x 660 x 2360 |
| Weight | kg | 550 |
| Electrical supply | AC 230V / 60Hz +- 10 %, 1 phase system without neutral conductor | |
| Temperature specifications | °C | -10 to 200 °C |
| Pressure data | barg | -1 to 0,2 |
| Column | Mirrored glass column with vacuum insulation and sieve trays | |
| Materials in contact with product | Borosilicate glass 3.3, PTFE | |
| Liquid feed | Feed bottle: 5 L glass bottle on balance | |
| Additional features | Phase separator, vacuum pump |
