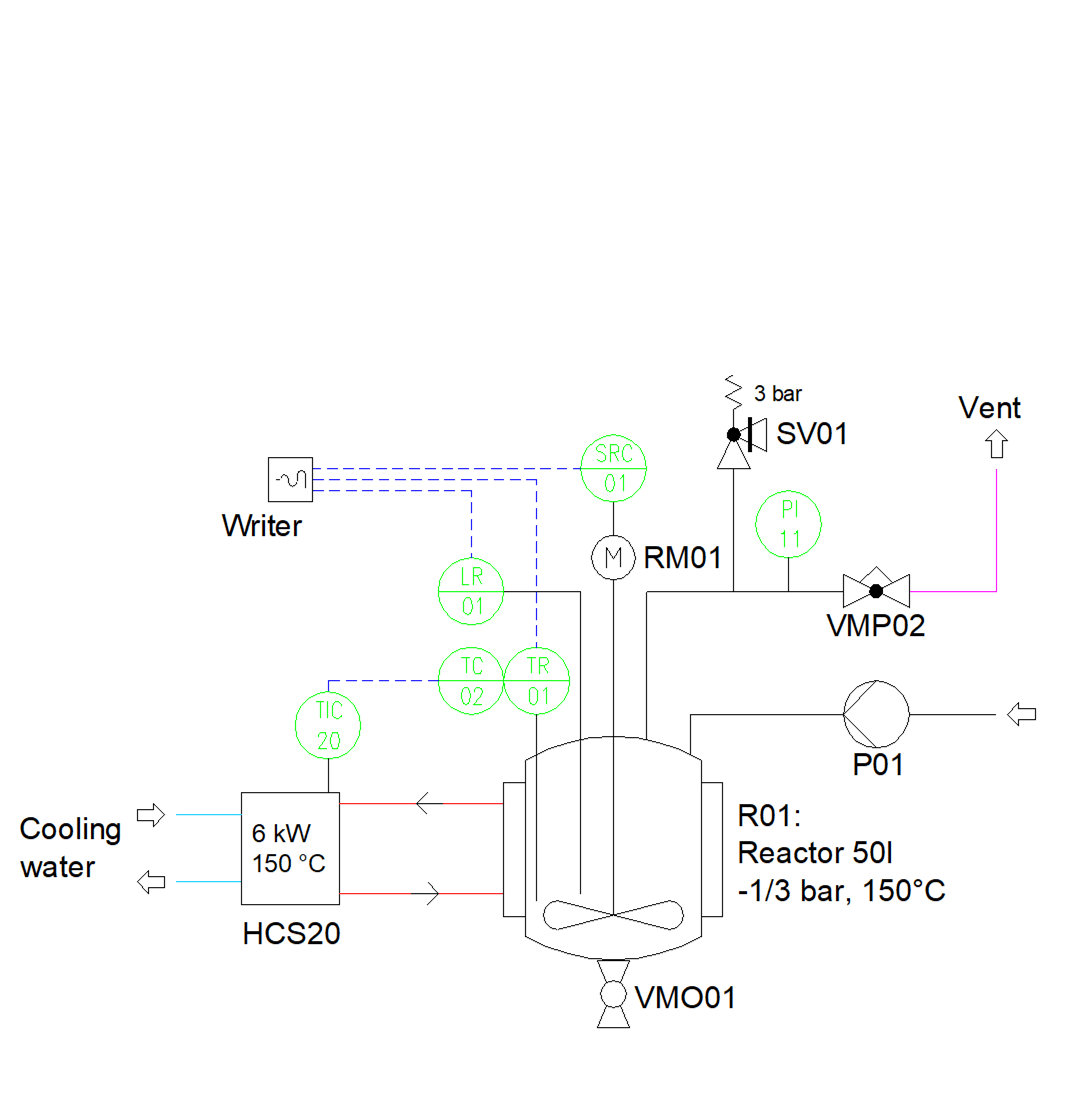

This plant consists of a 50-liter reactor plant. It features a compact unit that includes a thermostat covering a temperature range of -10 to 150 °C, and an integrated feed pump.
Digital data acquisition options are offered via USB or Ethernet interfaces, enabling efficient but easy data recording and transmission of vital process information
Features:
- 50 L reactor plant with non-centric stirrer.
- Compact unit includingthermostat (-10 – 150 °C) and feed pump.
- Digital data acquisition with USB or Ethernet interface.
Technical Specifications
| Description | Unit | Value |
|---|---|---|
| Dimensions L x D x H | mm | 1910 x 750 x 1260 |
| Weight | kg | 360 |
| Electrical supply | 230/400 V AC, 50 Hz, 16 A | |
| Reactor total / heated volume | l | 60/50 |
| Temperature specifications | °C | 150 |
| Pressure data | barg | -1 to 3, recommended max. operating pressure 2.4 |
| Reactor | Stainless steel: 1.4404, 1.4571 Sealing PTFE | |
| Liquid level sensor | 10-52 L | |
| Ambient conditions | 10 to 40 °C, max. humidity < 80 % |
