Crystallizer

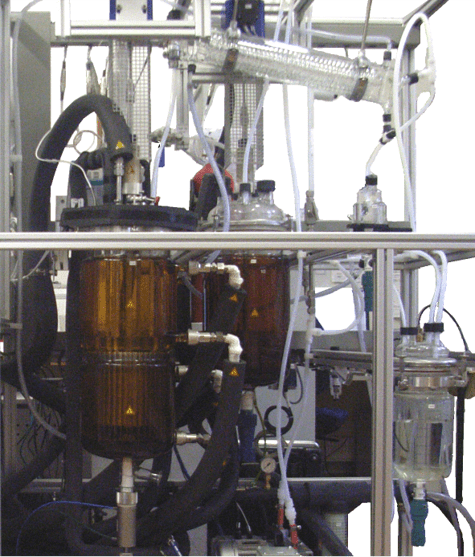

Crystallizer Unit with 4 Reactors

Crystallizer unit with four glass reactors with triple jacket, 2 x 10 L and 2 x 5 L, for vacuum, -40 to 130 °C, with condensers, transfer pumps, coolers, inertisation, venting system. Automated with Siemens S7, PC-operator station Simatic WinCC and recipe control.

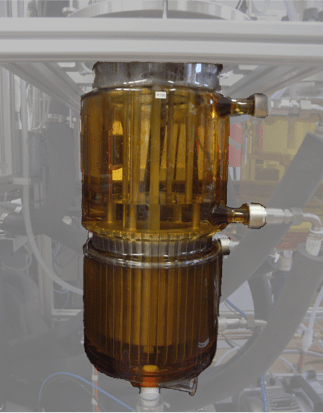

Crystallizer Unit with Internal Heat Exchanger

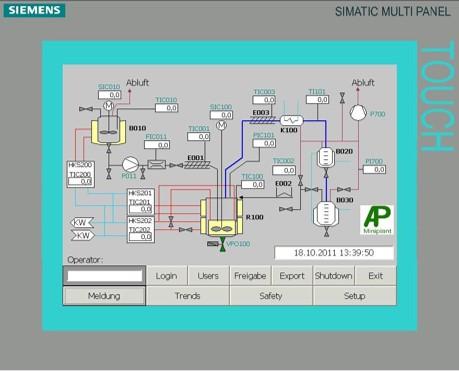

Crystallizer with glass reactor 15 L, split jacket, propeller stirrer, inside heat exchanger made of stainless steel, jacketed tube with fins for a well aligned flow and optimal heat transfer, condenser, vessels, heated feed vessel with dosing pump, vacuum pump, 3 thermostats. Automated with Siemens S7 and Touch panel.
